Manfrotto 502AH Pro Video Head with Flat Base

Weight capacity is 7kg and counterbalance supports 4kg. It can support 5.8kg as a static weight. The balance plate's 83mm range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.

The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are of course independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.

• Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level.
• Sliding quick-release place secured by a secondary safety system.
• The flat base has a 3/8"-16 female threaded mounting hole for attaching to tripods, sliders, and other platforms.

• Manfrotto 502AH Pro Video Head with Flat Base

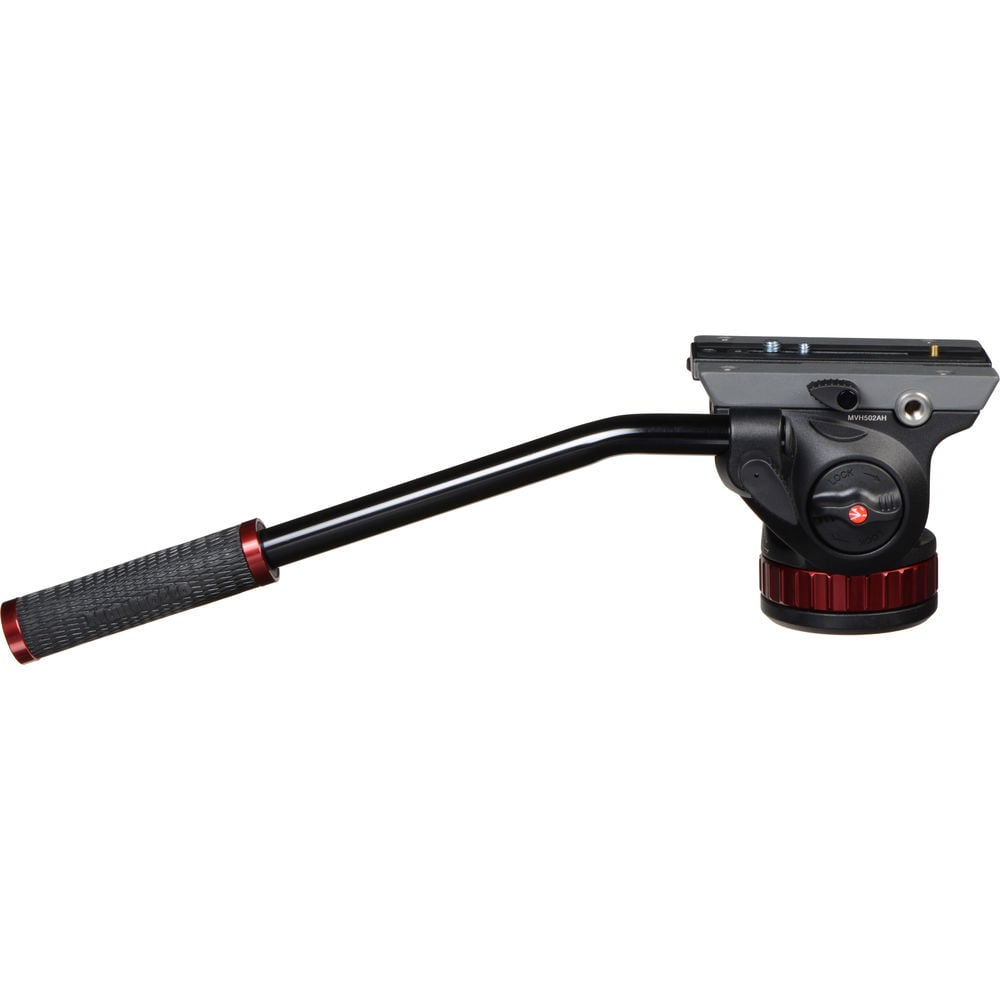

• Pan Handle
• 502PLONG Sliding QR Plate
• Limited 2-Year Warranty

Head Type: Video Head
Material: Aluminium
Quick Release: Yes
Plate Type: Manfrotto 504PLONG
Load Capacity: 7kg
Weight: 1.7kg
Working Height: 13cm
Range of Motion: -80° / +90° Tilt and 360º Pan
Friction Setting: Yes, continuously adjustable from 0 to max level
Independent Pan Lock: Yes
