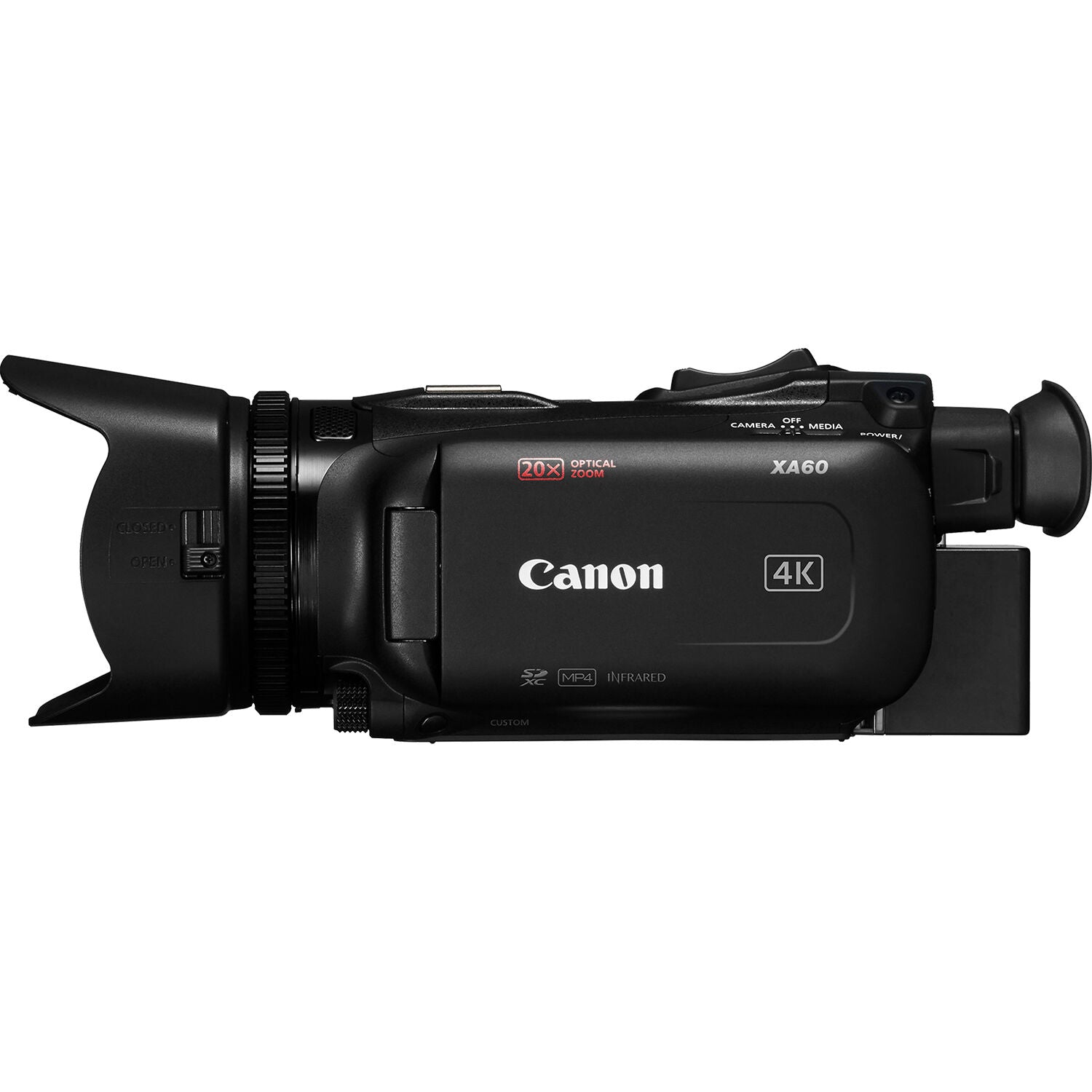

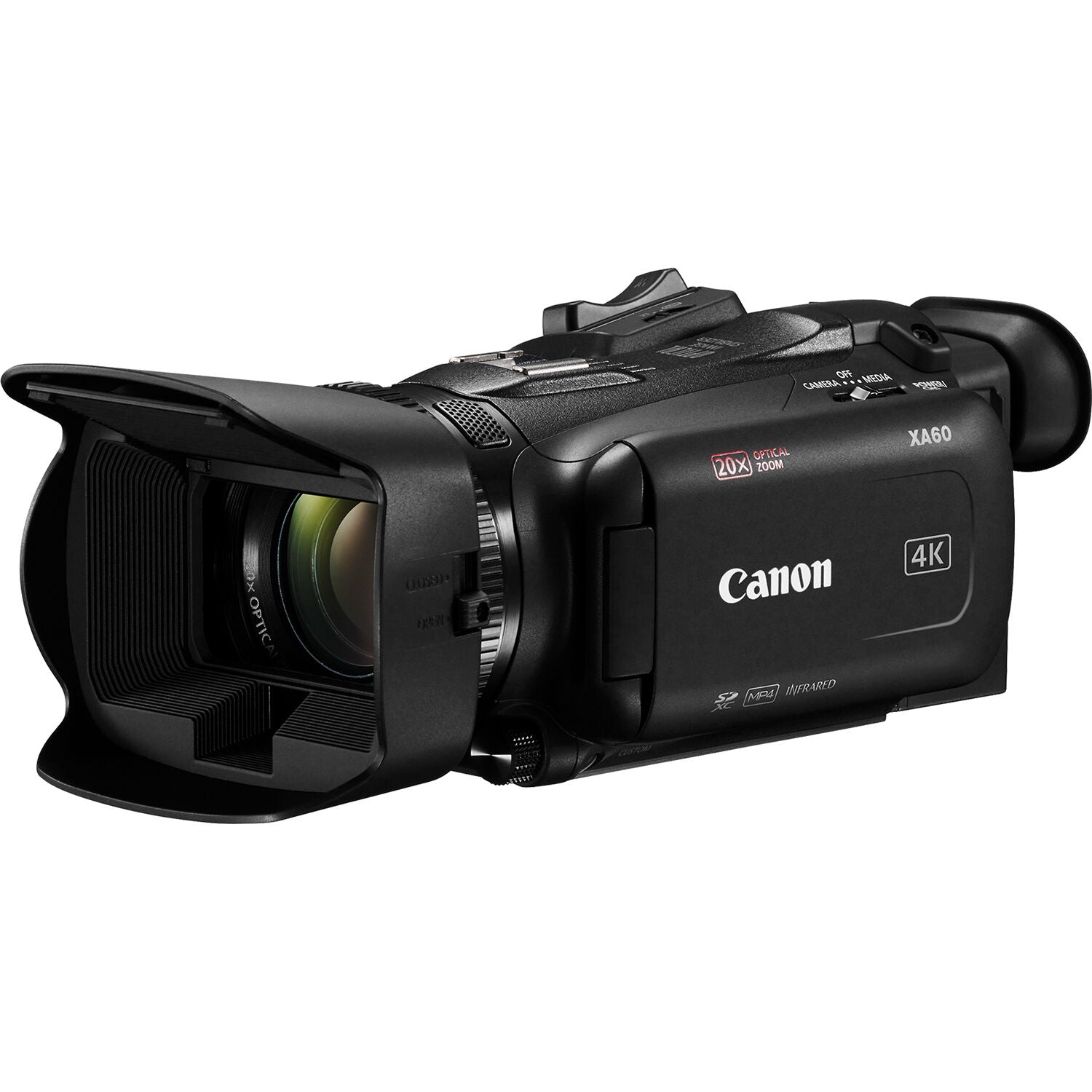

Canon XA60B Professional 4K Camcorder

Shoot, record, stream

Shoot high quality 4K UHD video with the compact XA60B. As well as outstanding Over Sampled HD processing, advanced autofocus, a Canon 20x optical zoom lens and HD live streaming in UVC 1 via USB-C over a computer, capture footage in either XF-AVC or MP4 formats.

Compact professional 4K UHD camcorder

Capture stunning 4K UHD and superior Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over-sampled HD processing delivers Full HD images from the 4K sensor.

4K 20x optical zoom lens

The Canon lens covers a 29.3mm wide angle (35mm equivalent) plus a powerful 612mm reach with Dynamic IS. A digital zoom boosts to 800x with 5-axis image stabilisation.

Fast, precise focusing with face detection

Adjustable focusing speeds and an advanced Hybrid AF system give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for flexible recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P.

Multiple shooting functions

Output options include simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu.

Livestream and more

Stream HD footage via UVC 1 over a computer or add a date and time stamp with OSD recording. 4-channel linear PCM for audio (Two XLR terminals are available on the HDU-4 top handle sold separately).

• Canon XA60B Camcorder
• PD-E1 USB Power Adapter
• BP-820 Battery Pack
• Lens Hood with Lens Barrier
• Limited 2-Year Warranty

Video Cameras

Sensor: 1/2.3-type CMOS
Processor: DIGIC DV 6
File Format:
XF-AVC:
3840 x 2160 / 25.00P (160 Mbps)
1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
MP4:
3840 x 2160 / 25.00P(150 Mbps)
1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)

JPEG up to 3840x2160
FPS Recording:
HDMI output (When Shooting):
UHD recording mode:
1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode:
1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
High Definition: UHD 4K
Lens Mount: Built-in lens
Optical Zoom
20x optical zoom
Wide-angle 29.3 – 601mm 4K zoom (35mm equivalent)
Audio Input:
3.5mm microphone input jack (Supply Voltage 2.4V DC)
Built-in Mic
Headphone Output: 3.5Mm Stereo Mini Jack
Memory/Storage:
SD/SDHC/SDXC card (2 card slots)
Peaking:
Selectable Peaking Colour: Red / Blue / Yellow
Zebra: 70% or 100% reference level
Optical/ Digital Viewfinder:
3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots
Touch Screen: Yes, 3.5"
Battery: Canon Battery Pack BP-820
Weight: 740g

Batteries

Model: BP-820
Capacity: 1780mAh
Volt: 7.4V
Type: Rechargeable Lithium-Ion Battery
