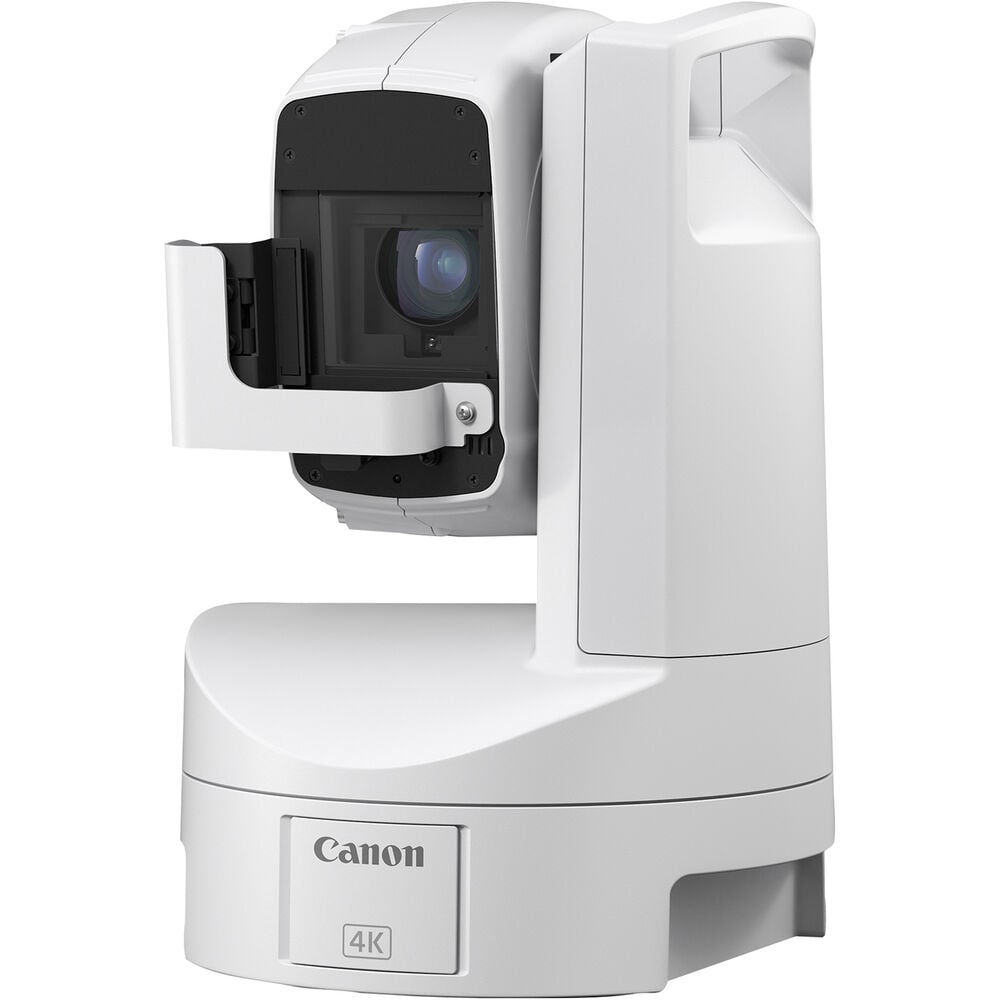

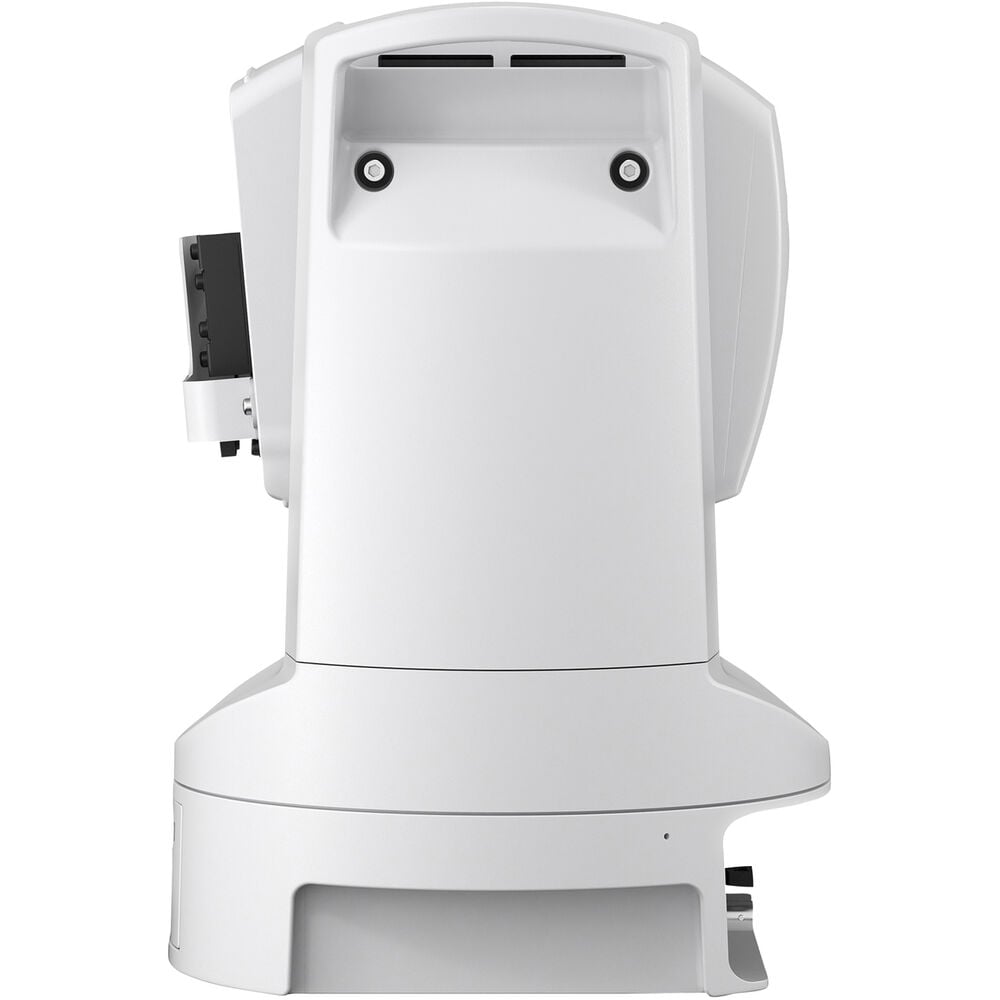

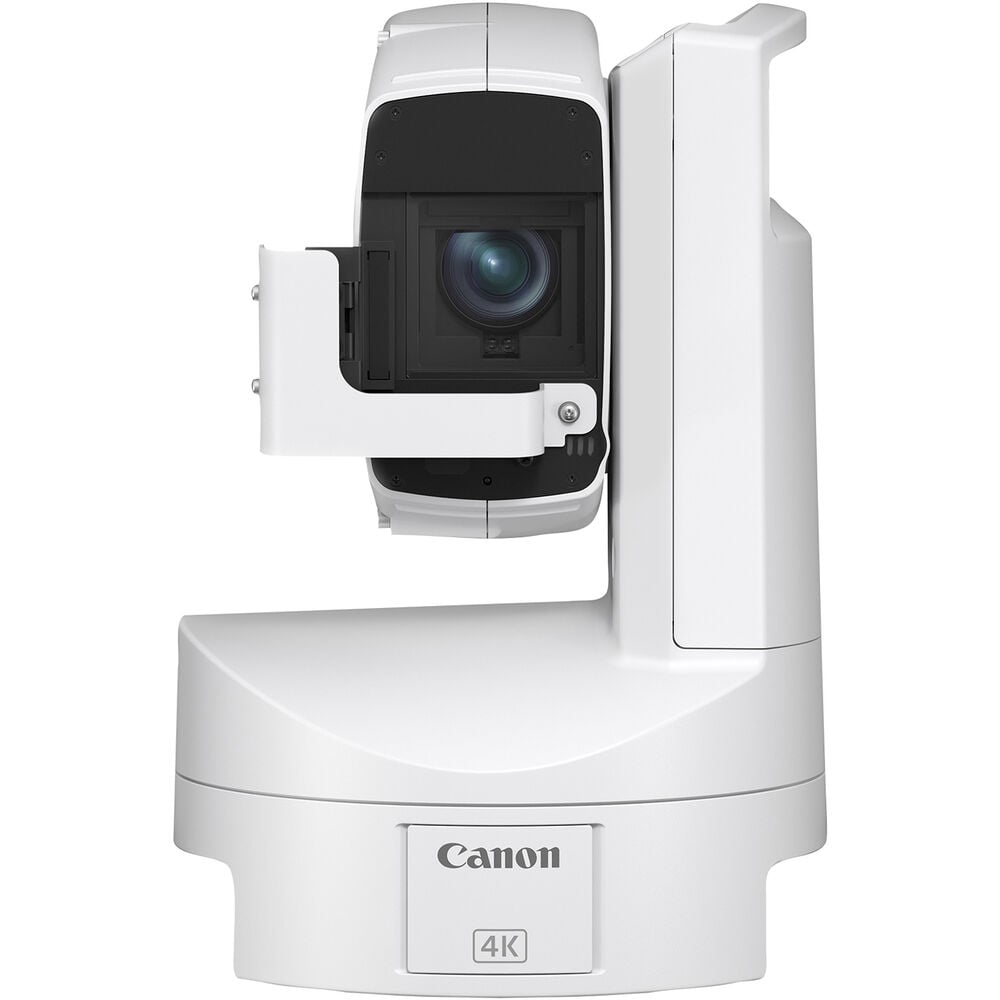

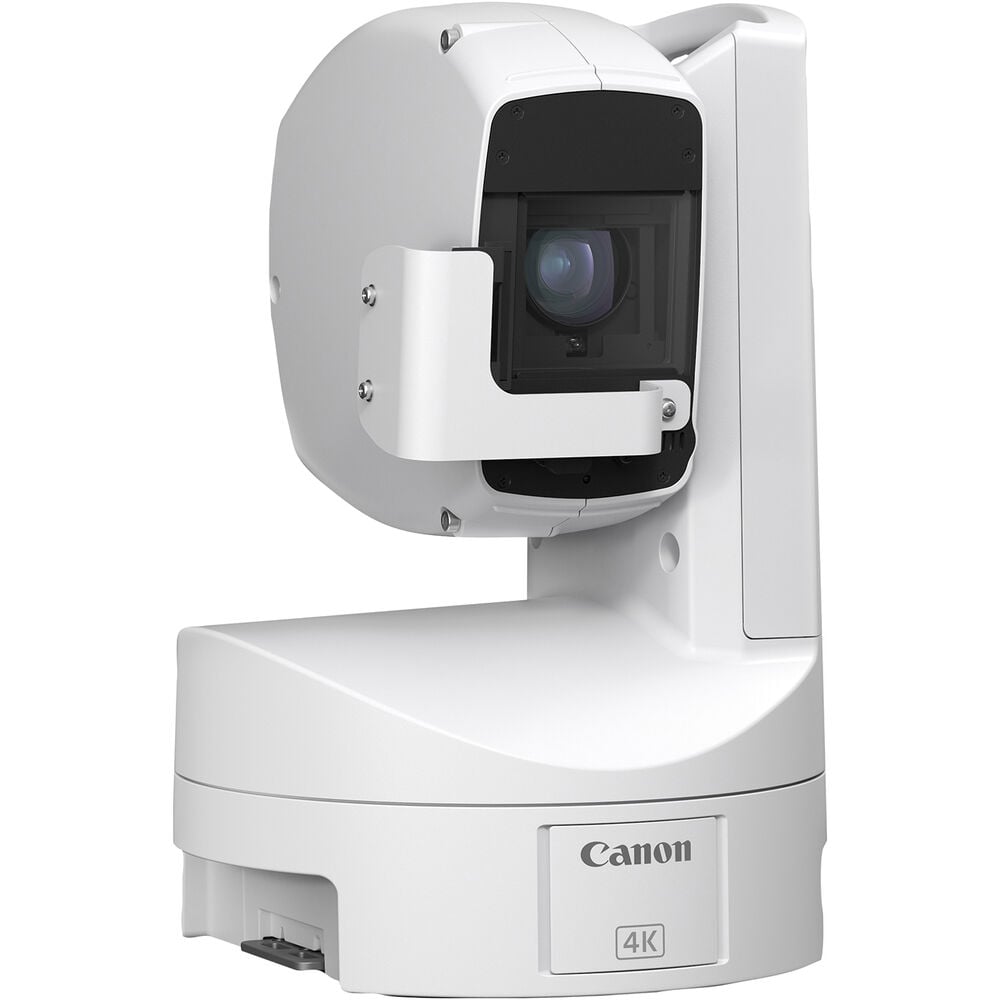

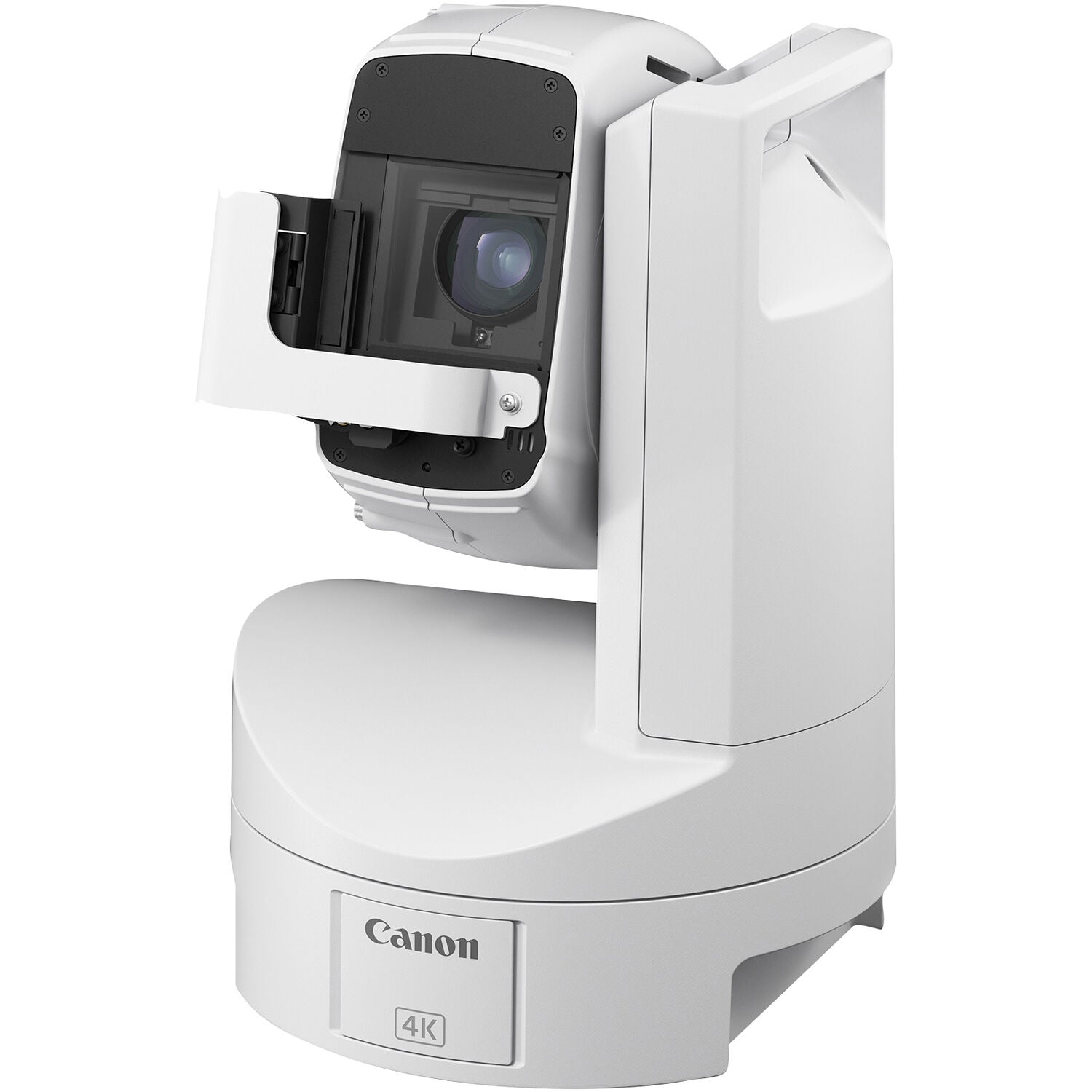

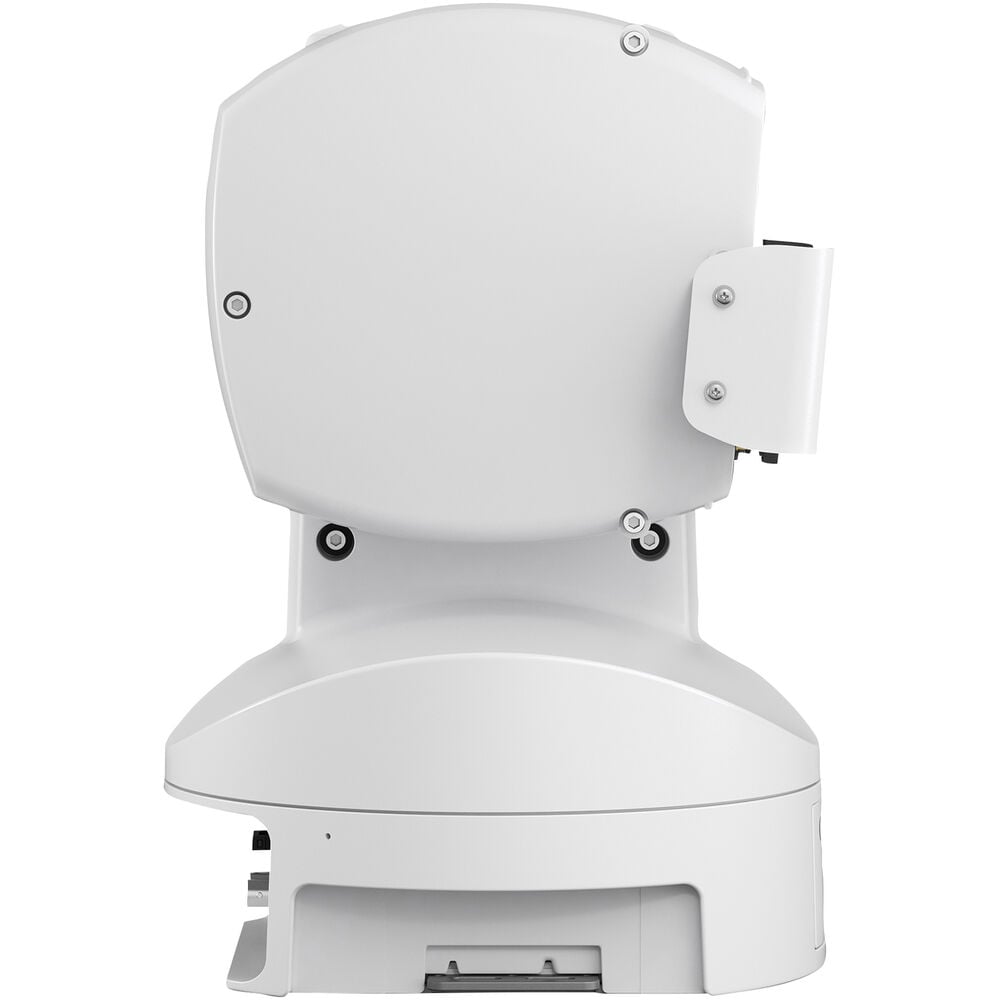

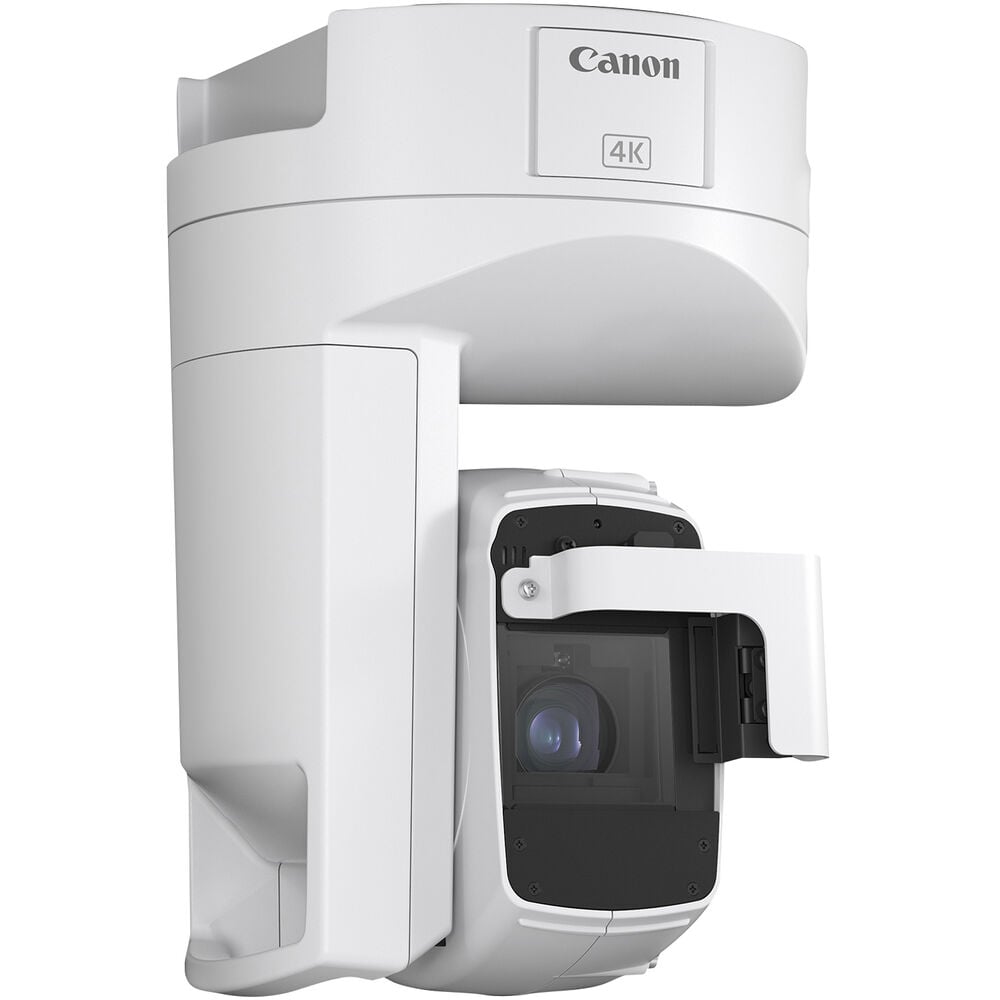

Canon CR-X300 Outdoor 4K PTZ Camera with 20x Zoom (Titanium White)

Experience unparalleled video quality with the Canon CR-X300 Outdoor 4K PTZ Camera. Designed for versatility and durability, this camera is perfect for capturing stunning footage in any environment.

Key Features

• 4K UHD Video Quality: Capture crystal-clear 4K footage with a 1/2.3-inch CMOS sensor.
• 20x Optical Zoom: Get closer to the action with a versatile zoom range of 29.3–601mm.
• Weatherproof Design: IP65 rating ensures performance in harsh weather conditions from -15° to +40°C.
• Advanced Streaming Options: Supports 6G SDI, HDMI, and various streaming protocols for flexible connectivity.
• Hybrid Autofocus: Combines contrast and phase-detection AF for precise focus in low light.

Enhanced Functionality

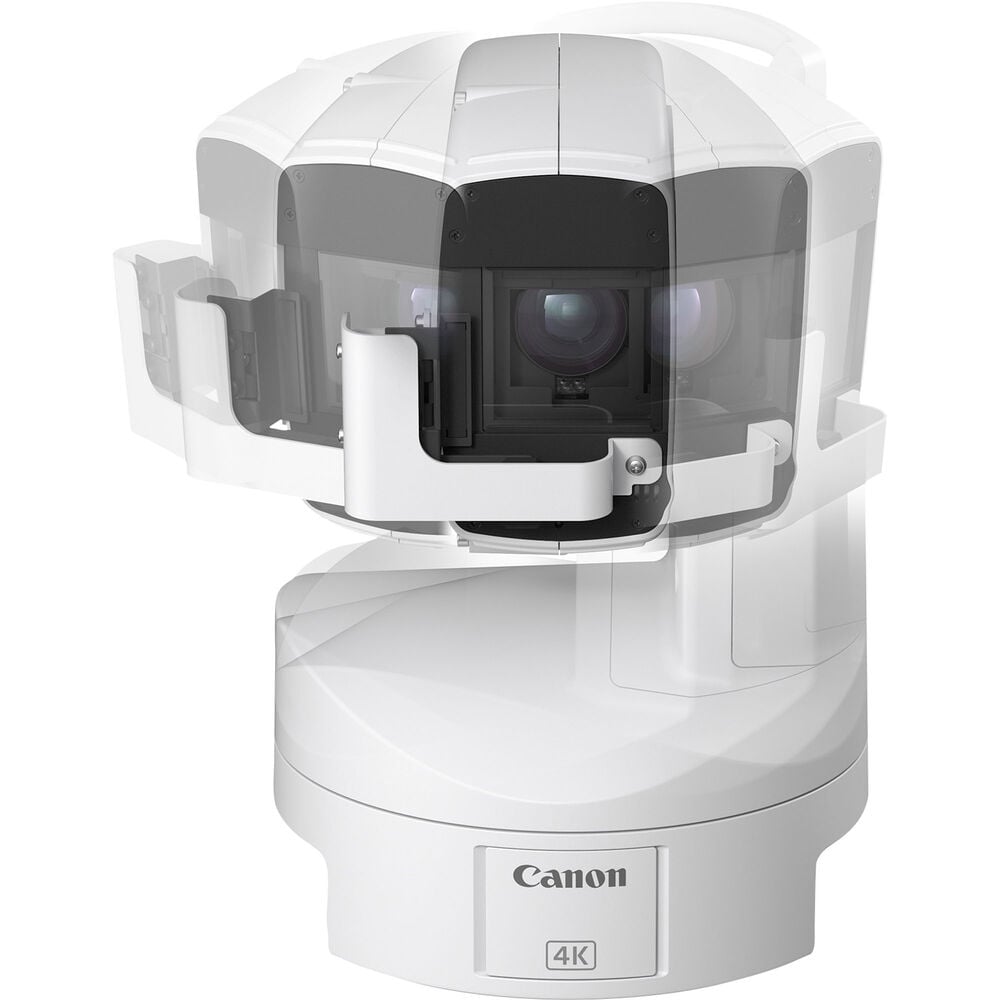

The CR-X300 offers seamless control with capabilities for simultaneous Pan, Tilt, and Zoom operations. Compatible with Canon’s RC-IP100 controller, it provides smooth adjustments as slow as 0.3 degrees per second.

Robust Build Quality

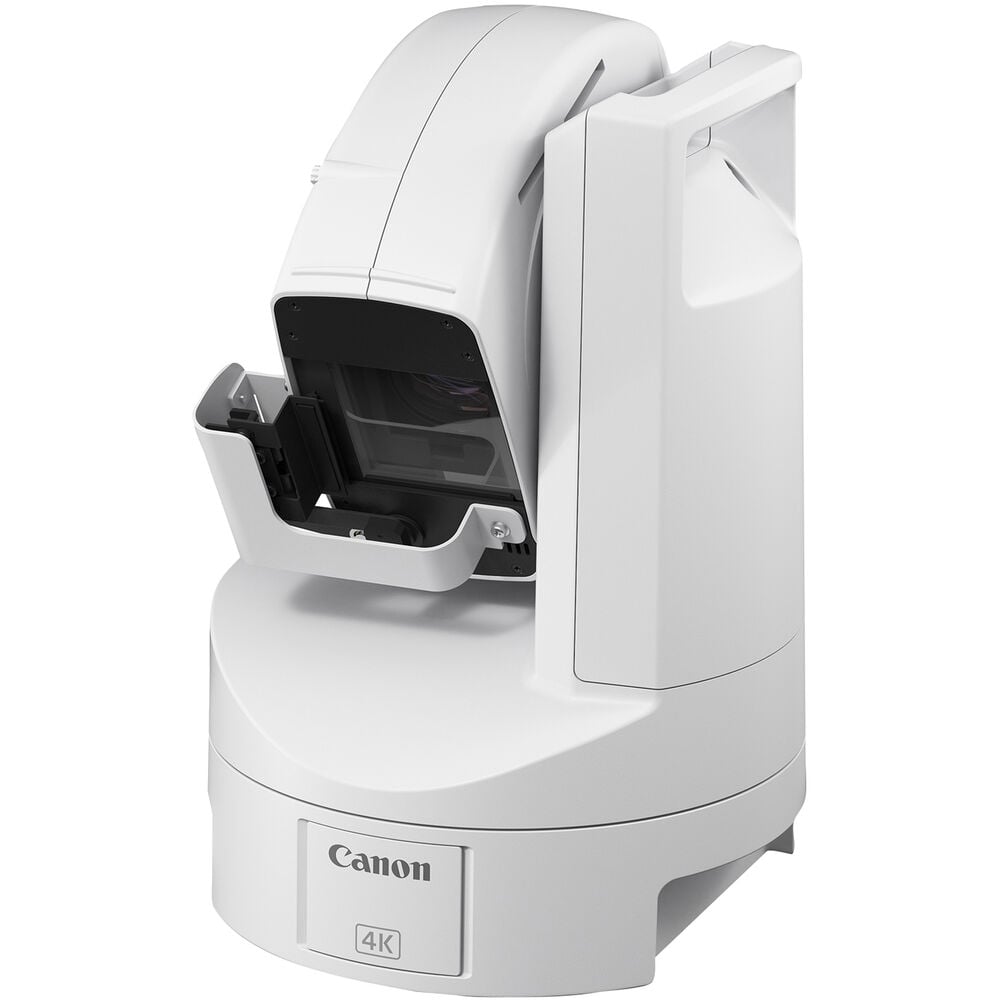

Built to last, the camera features a fully sealed body, an inbuilt wiper for clear optics, and salt repellence, making it ideal for outdoor use.

Customisable Settings

Fine-tune your shooting experience with the custom picture menu, allowing for tailored settings to match various shooting scenarios.

Seamless Video Streaming

Utilize the free Webcam Driver for easy integration with conferencing platforms, supporting up to 4K 30p video streaming with multiple Canon PTZ cameras.

• Canon CR-X300 Outdoor 4K PTZ Camera with 20x Zoom (Titanium White)
• Connector Cover
• Power Cable
• Limited 3-Year Warranty

Imaging

Image Sensor: 1/2.3"-Type CMOS
Sensor Resolution: Actual: 21.14 Megapixel, Effective: 8.29 Megapixel (3840 x 2160)
IR Cut Filter: Yes
Focus Control: Autofocus, Manual Focus
Shutter Speed: 1/2000 to 1/6 Second
ISO/Gain Sensitivity: Gain: 0 to 36 dB
Precise Scan Rate Control: No
Minimum Illumination: 3 Lux at 1/60 Shutter Speed
Flip / Mirror Support: Image Flip
White Balance: Range: 2000 to 15,000K; Presets: AWB, Manual, Set A, Set B

Lens

Focal Length: 3.7 to 73.4mm (35mm Equivalent: 30.5 to 627mm)
Max Optical Zoom: 20x
Max Digital Zoom: 20x
Field of View: Horizontal: 65.6 to 3.6°, Vertical: 39.8 to 2°
Maximum Aperture: f/1.8 to 2.8
Minimum Focus Distance: 0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele)

Video Capture

Video Output: 4:2:0 8-Bit via RJ45: 3840 x 2160 at 5/6/12/12.50/15/23.98/25/29.97 fps; 1920 x 1080p at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps; 1280 x 720 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps; 640 x 360 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps

4:2:2 10-Bit via HDMI: 3840 x 2160 at 23.98/25/29.97 fps; 1920 x 1080p at 23.98/25/29.97/50/59.94 fps; 1920 x 1080i at 50/59.94 fps; 1280 x 720 at 50/59.94 fps

4:2:2 10-Bit via SDI/BNC: 1920 x 1080p at 23.98/25/29.97/50/59.94 fps; 1920 x 1080i at 50/59.94 fps; 1280 x 720 at 50/59.94 fps
Embedded Audio: SDI
Broadcast Output: NTSC/PAL
IP Streaming: RTSP/RTP/RTMPS/RTMP/NDI HX: 3840 x 2160 at 29.97p, 25p, 23.98p; 1920 x 1080 at 29.97p, 25p, 23.98p, 59.94p, 59.94i, 50p, 50i; 640 x 360 to 1280 x 720 at 59.94p, 50p

Control

Presets: 100 via IP, VISCA
Pan/Tilt: Pan: 360° (-180 to 180°) at 0.3 to 60°/s; Tilt: 130° (-40 to 215°) at 0.3 to 60°/s
Tally Light: Yes

Interface

Video I/O: 1x BNC (6G-SDI) Output, 1x HDMI Output, 1x RJ45 (NDI) Output
Other I/O: 1x BNC (Genlock) Input, 1x RJ45 (RS-422, VISCA) Control Input
Built-In Microphone: Stereo
Built-In Speaker: No

Power

PoE Support: PoE++ 802.3bt
Power I/O: 1x Barrel (12VDC) Input
Power Consumption: PoE: 40 W, Power Supply: 12 VDC 40 W

Environmental

Operating Conditions: 5 to 104°F / -15 to 40°C up to 90% Humidity

General

Mounting: 1x 1/4"-20 Female
Materials: Aluminium
OS Compatibility: Computer: Windows 10 or Later / macOS 11 Only; Mobile: Android/iOS
Dimensions (W x H x D): 12.24 x 8.54 x 8.54" / 31.09 x 21.69 x 21.69 cm; 8.54 x 12.24 x 8.54" / 21.69 x 31.09 x 21.69 cm
Weight: 7 kg (Body Only)
