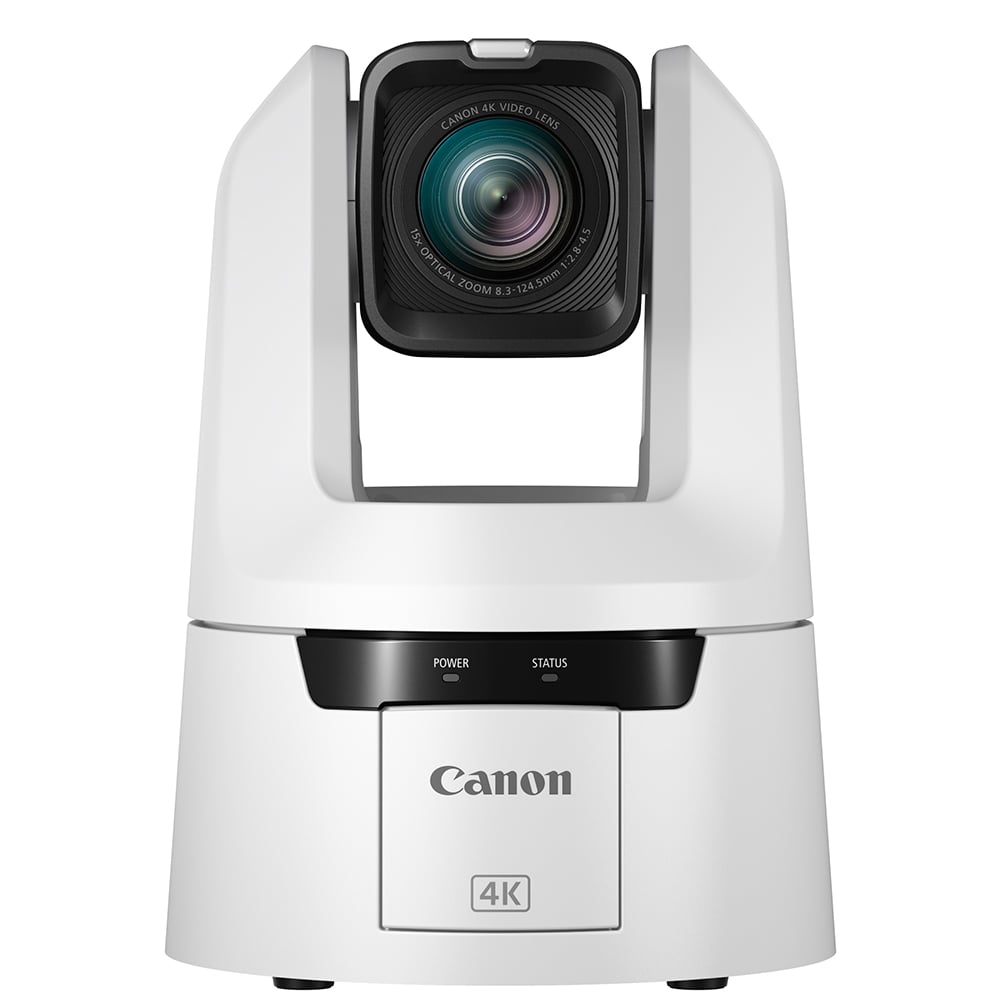

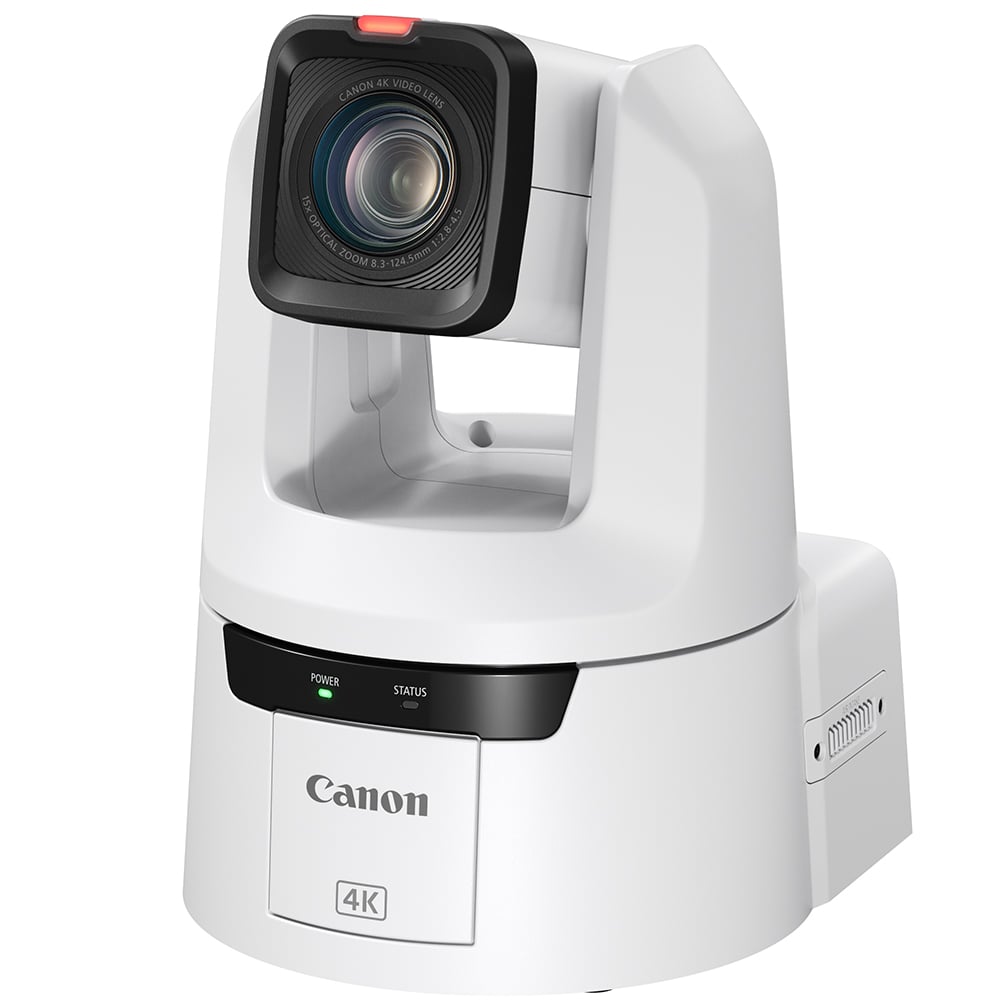

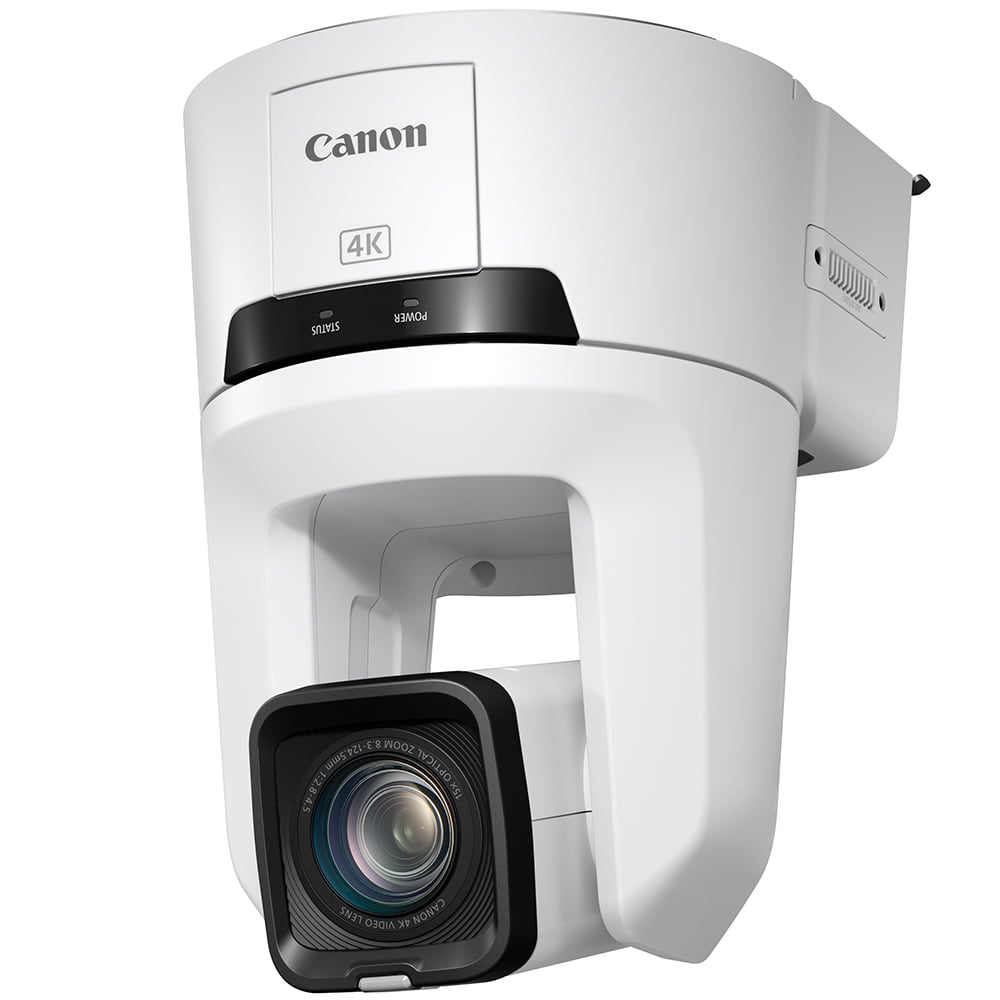

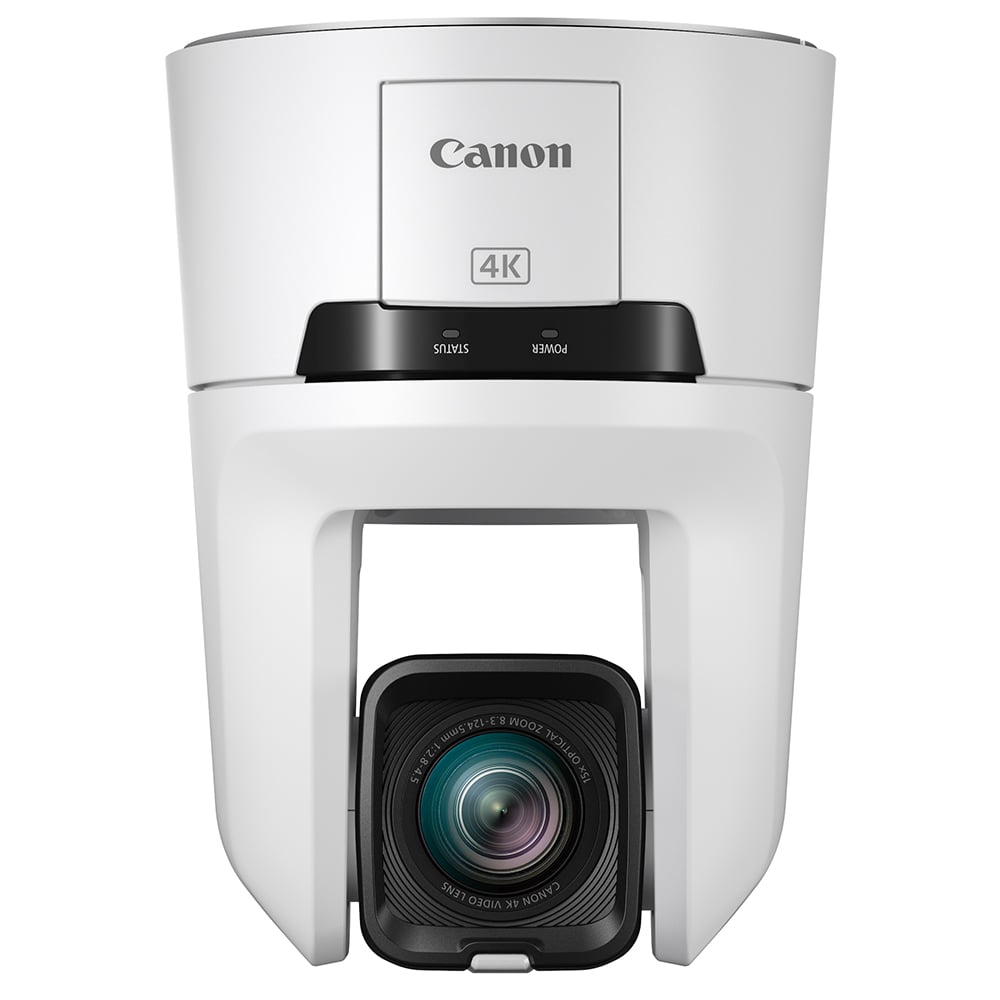

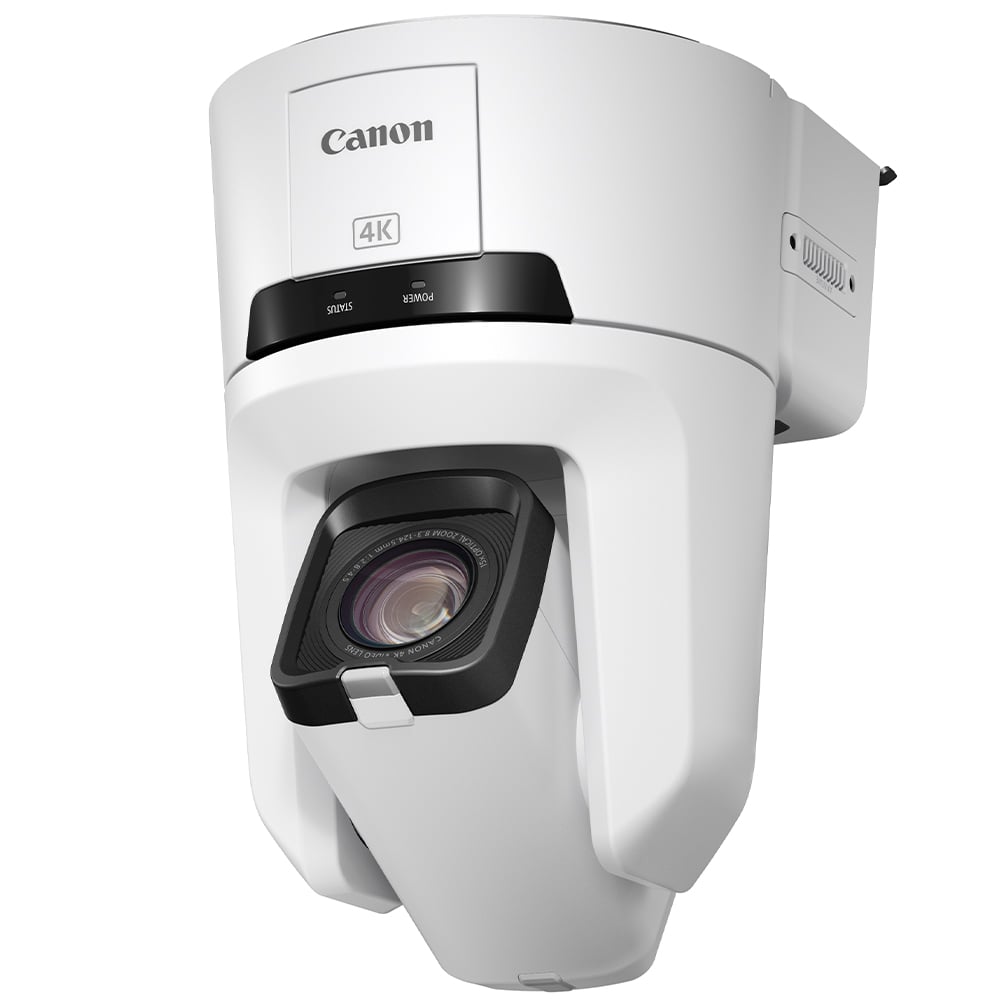

Canon CR-N700 4K PTZ Camera with 15x Zoom (Titanium White)

Canon CR-N700 4K PTZ Camera - Titanium White

Experience unparalleled video quality with the Canon CR-N700, a professional 4K PTZ camera designed for a variety of applications. With its 15x optical zoom and advanced autofocus, this camera is perfect for broadcasting, live events, and more.

Key Features

• 4K Resolution: Capture stunning 4K60P footage with exceptional clarity.
• Advanced Zoom: 15x optical zoom (30x in Full HD) for detailed imaging.
• Auto Tracking: Intelligent tracking of subjects with head/face detection (available via paid license).
• Low-Light Performance: Night Mode allows for high-quality footage in low-light conditions.

Versatile Applications

The Canon CR-N700 is suitable for:

• TV Studios
• Broadcasting
• Live Events
• Reality TV
• Houses of Worship
• Sports Events

Professional Imaging Technology

Equipped with a 1.0-Type CMOS sensor and DIGIC DV7 processor, the CR-N700 delivers 4K UHD imagery in broadcast-standard quality. Enjoy features such as:

• Multiple Autofocus Modes: Including Eye Detection and Face Priority AF.
• Customizable Settings: Tailor tracking and focus settings for optimal performance.

Comprehensive Connectivity

Connect seamlessly with 12G-SDI, HDMI, or IP (PoE++), supporting professional audio inputs and multiple streaming protocols for versatile integration.

Enhance Your Productions

Unlock the full potential of your video productions with the Canon CR-N700’s high-quality imaging, intelligent tracking, and flexible connectivity options. Perfect for any professional setting.

• Canon CR-N700 4K PTZ Camera with 15x Zoom (Titanium White)
• Ceiling Plate
• Ceiling Plate Screw
• Safety Cable
• Camera-to-Mount Safety Cable
• IR Remote Control
• Battery for Remote Control
• Limited 3-Year Warranty

PTZ Camera

Image Sensor:
Type 1.0 (1.0 in.) Single-Plate Cmos Sensor
Effective Pixels:
Approx. 8.29 megapixels (3840 x 2160)
Lens: 15x Optical Zoom
Focal Length:
8.3 – 124.5 mm, f/2.8 – 4.5,
35mm Equivalent Focal Length:
approx. 25.5 (W) – 382.5 mm (T)
Zoom:
Optical Zoom - 15x optical zoom (30 x with advanced zoom)
Digital Zoom - 20x digital zoom
Gain: -6.0 dB - 36.0 dB
Minimum Focusing Distance:
1cm at Wide End, 60cm Across Entire Zooming Range
Shutter Speed: 1/3 to 1/2000 Second
Angle Of View:
Horizontal: 73.0 (W) – 5.7° (T)
Vertical: 45.2° (W) – 3.2° (T)
Iris:
9-Bladed Iris Diaphragm
ND Filter: Built-In ND Filters: 1/4, 1/16, 1/64
Pan and Tilt:
Pan operation range: Horizontal ±170°
Pan operation speed: 0.1° – 100°/sec.
Tilt operation range: Vertical -30° – +90°
Tilt operation speed: 0.1° – 100°/sec.
White Balance:
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2)

PTZ Output Format

HDMI Output:
3840 x 2160:
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
IP Output:
[Frame frequency 59.94 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 29.97 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 50.00 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 25.00 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 23.98 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
*59.94 fps/50.00 fps is only when H.265.
Number of Presets:
Max. 100 (including home position)
SDI Output:
12G-SDI
3840 x 2160:
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)

3G-SDI
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
Supported Video and Control Protocols: IP, NDI, VISCA
USB Output: No

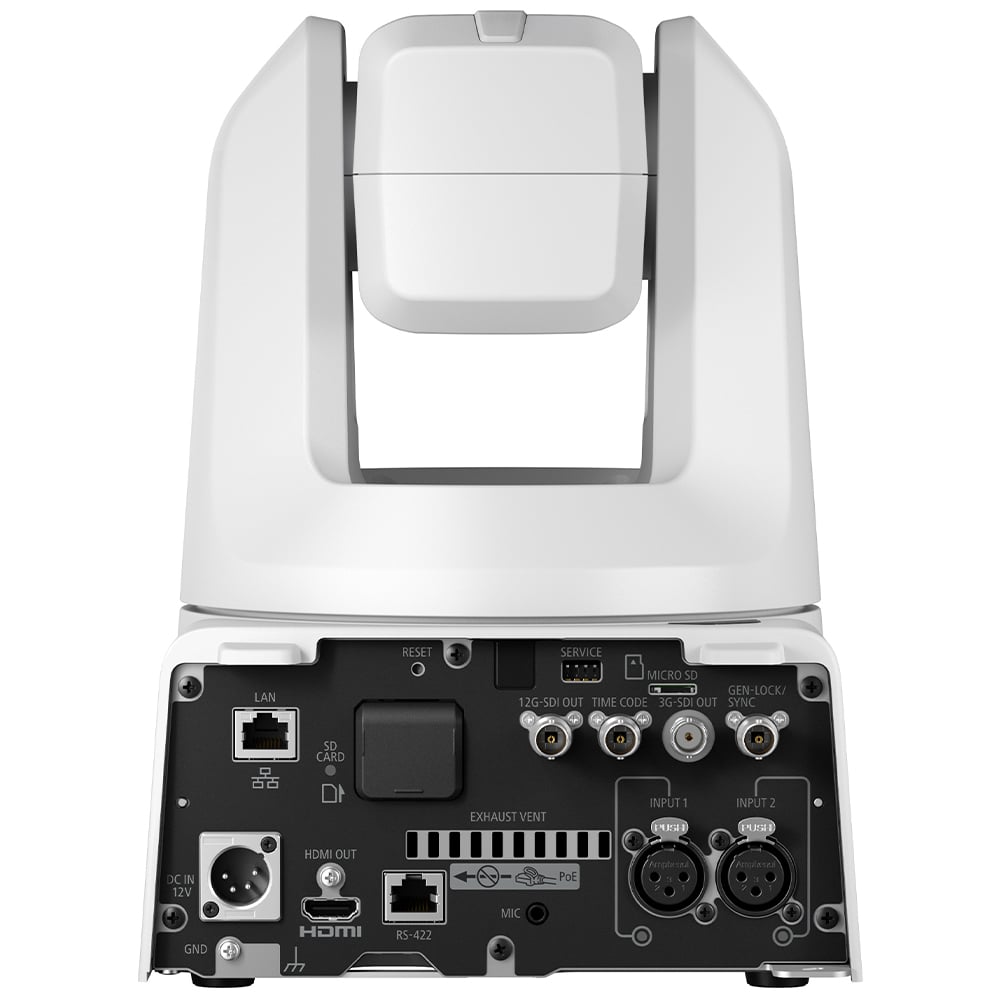

PTZ Interface

Communication Control:
LAN, Wi-Fi, Serial, IR
HDMI OUT Terminal:
HDM connector (Type A), both video and audio are output only
RS-422 Terminal
RJ45 connector x 1
MIC Terminal:
ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power)
Network Terminal:
LAN x 1, RJ45, 1000Base-T
RS-422 Terminal: Yes
SDI OUT Terminal: 12G-SDI OUT Terminal
USB Terminal: No
