Insta360 Mic Pro Digital Wireless Microphone Transmitter (Black)

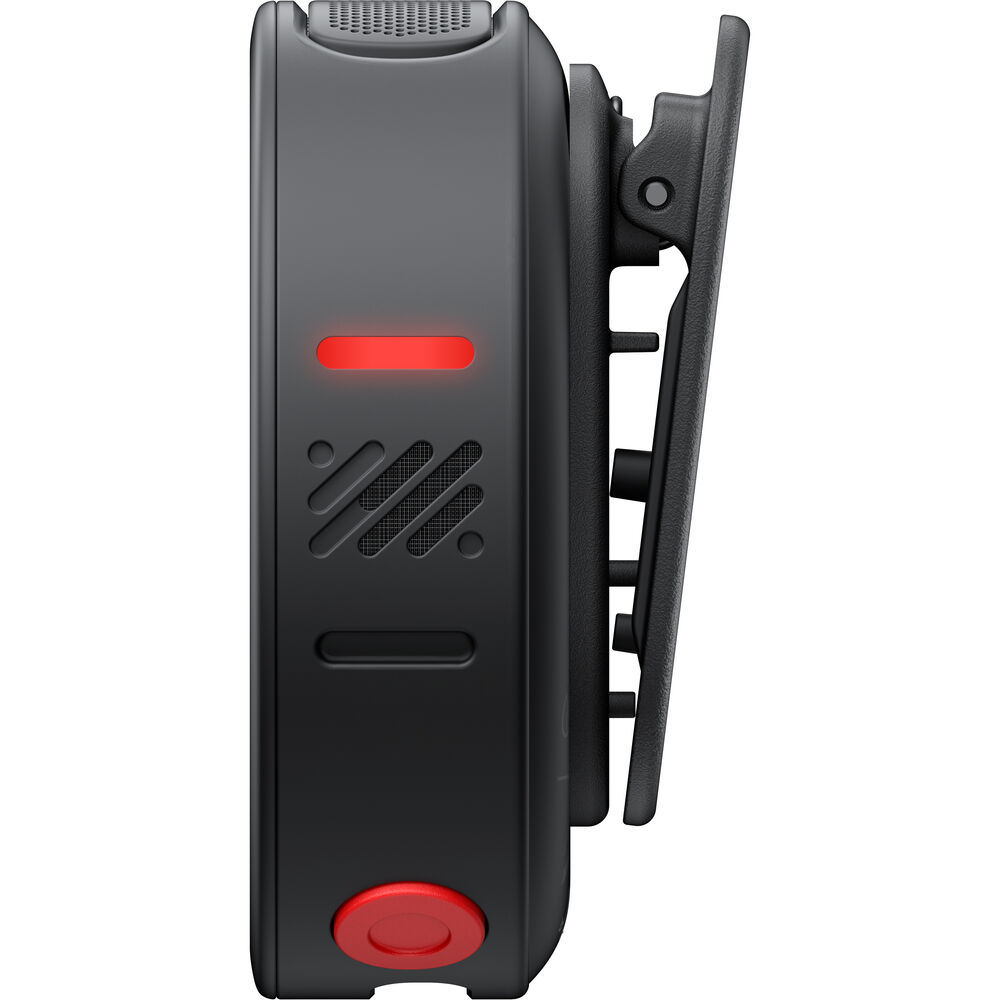

Triple Capsule Adaptable Directional Acoustic Tracking

The internal hardware layout incorporates a specialised three-microphone cluster to offer digital switching between distinct pickup geometries tailored for your environmental layout. Users can instantly isolate speech via a tight supercardioid pattern to reject ambient chatter, engage omnidirectional mapping for multi-person tracking, or select a bi-directional figure-eight configuration for balanced face-to-face dialogue.

Integrated High-Fidelity Local Backup Storage Engine

The digital transmitter architecture features standalone onboard recording capability directly into internal memory to safeguard your dialogue against wireless interference or receiver dropouts. This framework serves as an autonomous secondary field capture module, locking uncompressed audio frequencies down to preserve full dynamic recovery options during post-production tracking.

High-Output Maximum Sound Pressure Level Threshold

Engineered to manage volatile structural volume shifts without clipping, the acoustic input handles sound pressure limits reaching up to 130dB. This hardware tolerance prevents capsule distortion when capturing high-intensity acoustic environments, keeping vocal profiles clear and usable when transition tracks move between soft speech and sudden ambient background audio peaks.

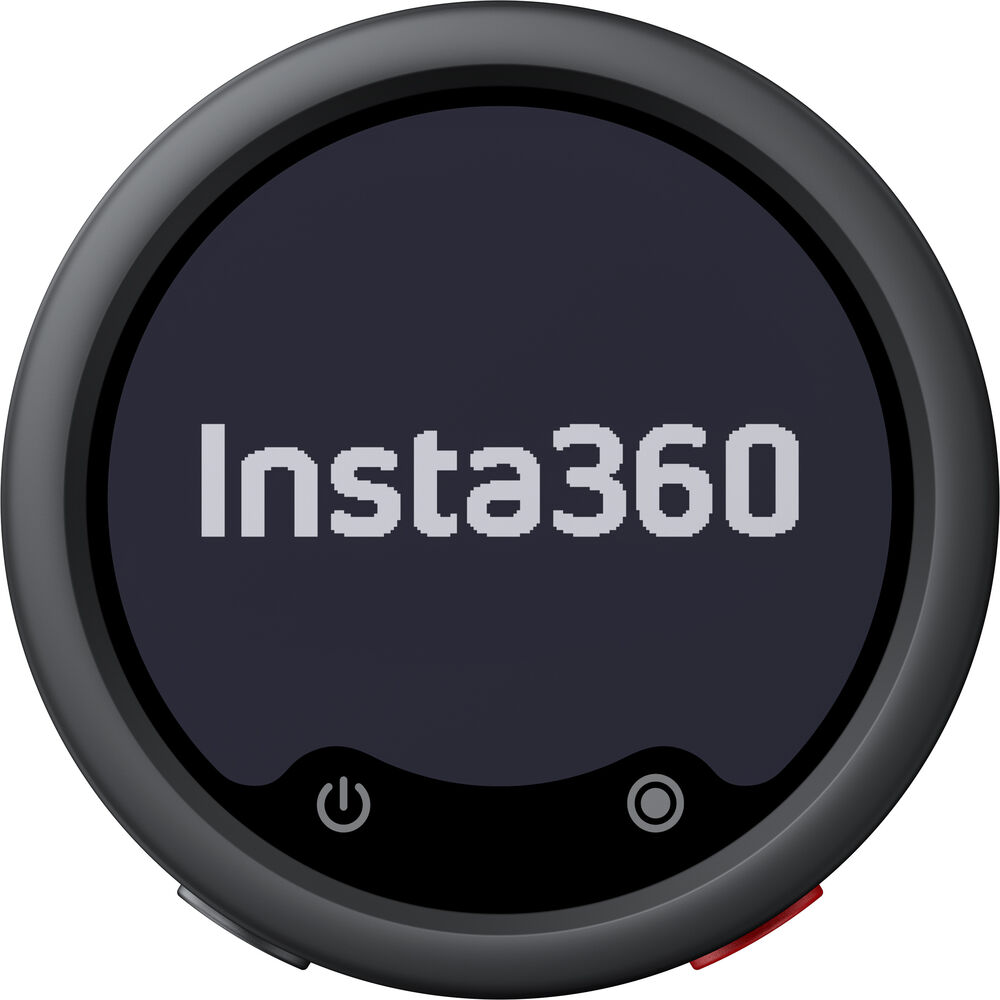

Low-Consumption Customisable Visual Telemetry Interface

The outward-facing chassis houses an ambient electronic visual display engineered to remain legible under direct sunlight while drawing minimal operational power. This structural screen layout can be custom-configured via the companion application to show vital battery metrics, connection status indicators, or custom-uploaded corporate logo graphics.

Extended Operating Range and Multi-System Synchronisation

Utilising a high-frequency 2.4GHz digital transmission spectrum, the transmitter maintains a frame-locked connection across open spaces up to 400m. This long-range capability combines with integrated timecode support to allow the simultaneous tracking of up to four independent transmitters across multi-camera production sets.

• Insta360 Mic Pro Transmitter (Black)
• Clip
• Button Magnet
• Limited 1-Year Warranty

Model: Insta360 Mic Pro Transmitter (Single Unit)
Colour: Black
Wireless Technology: Digital 2.4GHz, Bluetooth
RF Frequency Band: 2400MHz to 2484MHz
RF Channel Scanning: Auto-Scan
Modulation Sync Method: 2.4GHz QPSK
Maximum Operating Range: 400m
Maximum Transmitters per Band: 4
Encryption: No
Built-In Recorder: Yes (via Onboard Storage)
Timecode Support: Yes
Mobile App Compatibility: iOS, Android
Antenna Type: Internal
Input Level Type: Microphone
Audio I/O Configuration: No External Microphone Input Support
USB Interface: 1x USB-C (Audio and Charging)
Gain Management: Auto-Level / Gain Support
Frequency Response (Low Cut Off): 20Hz to 20kHz
Frequency Response (Low Cut On): 100Hz to 20kHz
Microphone Type: 3x Built-In Capsules
Polar Patterns: Supercardioid, Omnidirectional, Figure-Eight
Maximum Sound Pressure Level (SPL): 130dB
Microphone Sensitivity: -38dBV (at 1kHz, 94dB SPL)

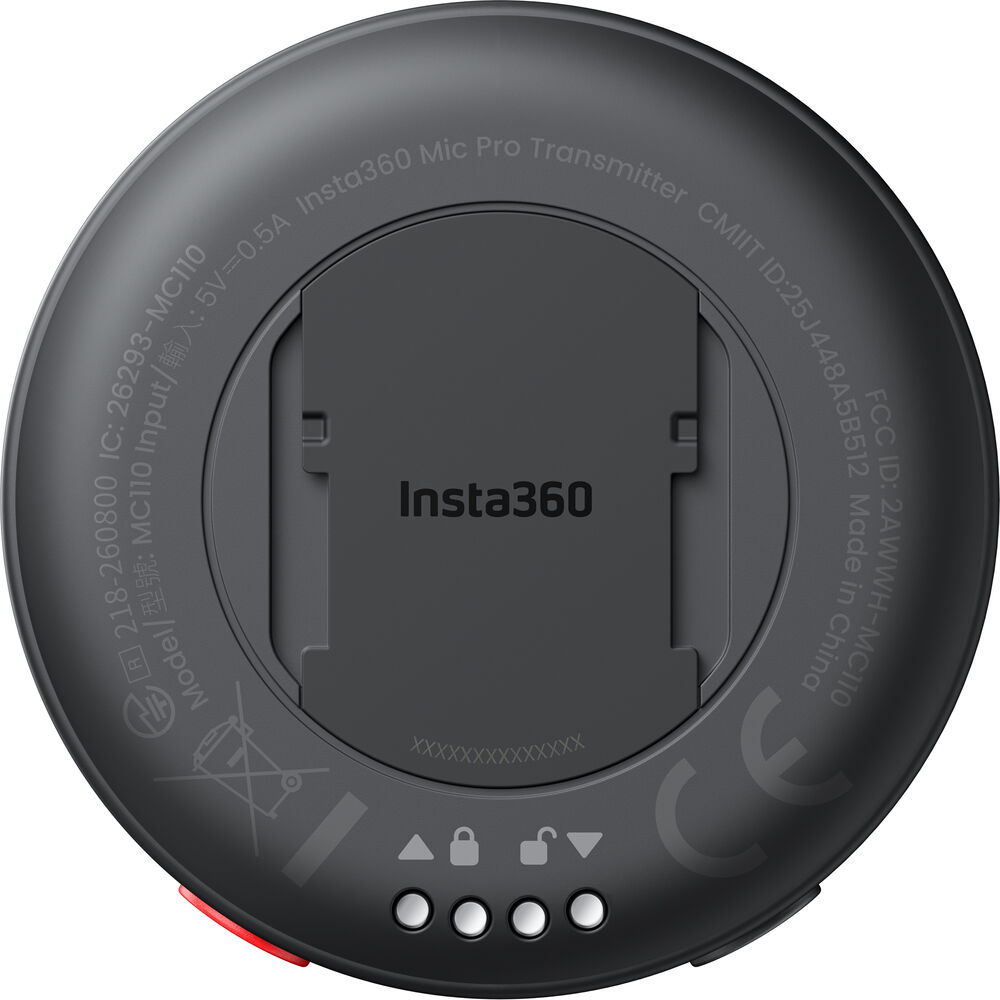

Mounting Options: Integrated Clip, Button Magnet Interlocking
Battery Type: 1x Built-In Rechargeable Lithium-Ion
Battery Capacity: 240mAh
Battery Life: 10hr
Battery Charging Time: 5min to 60min
Power Input Profile: 5VDC
Dimensions: 38 x 12.2mm
Weight: 19.7g
